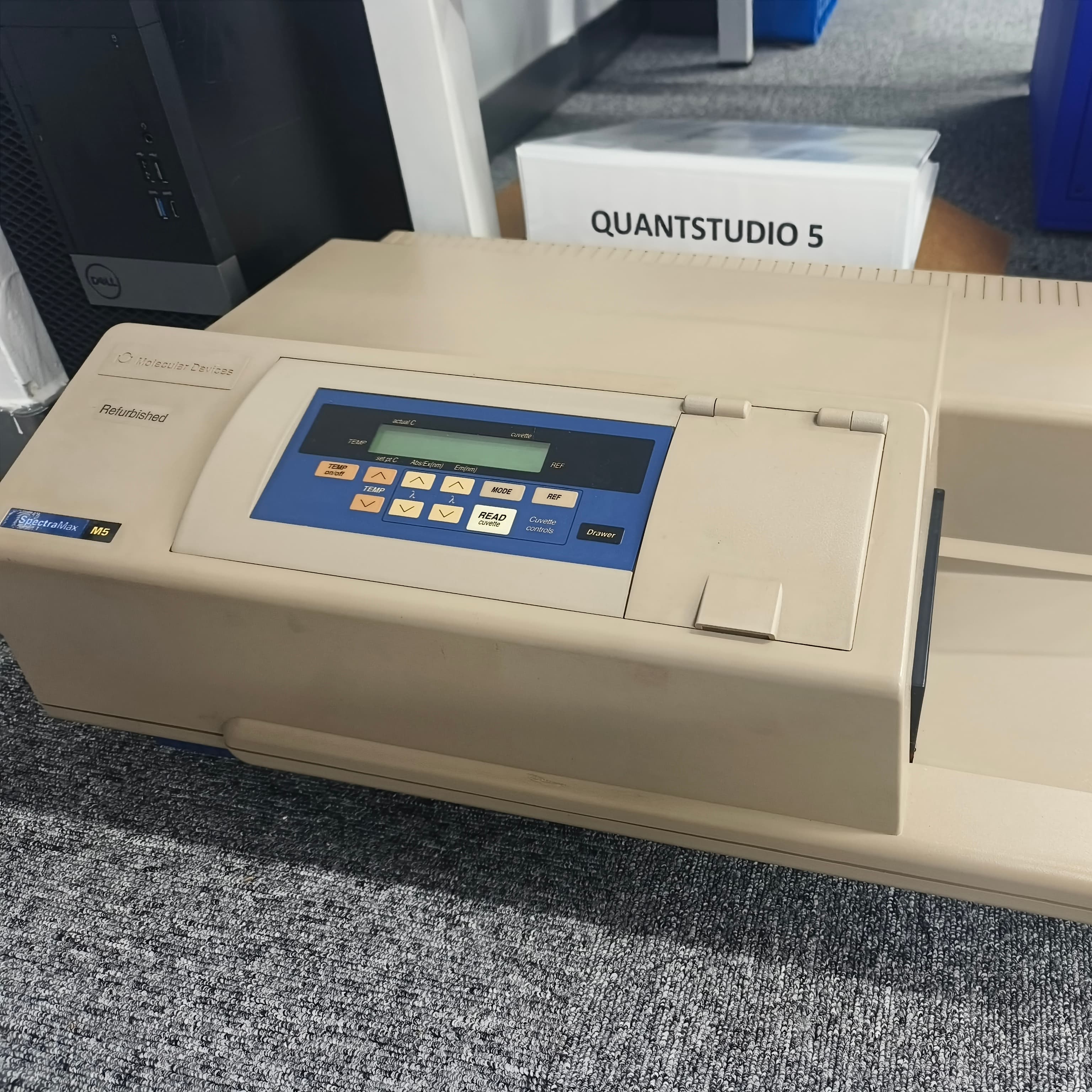

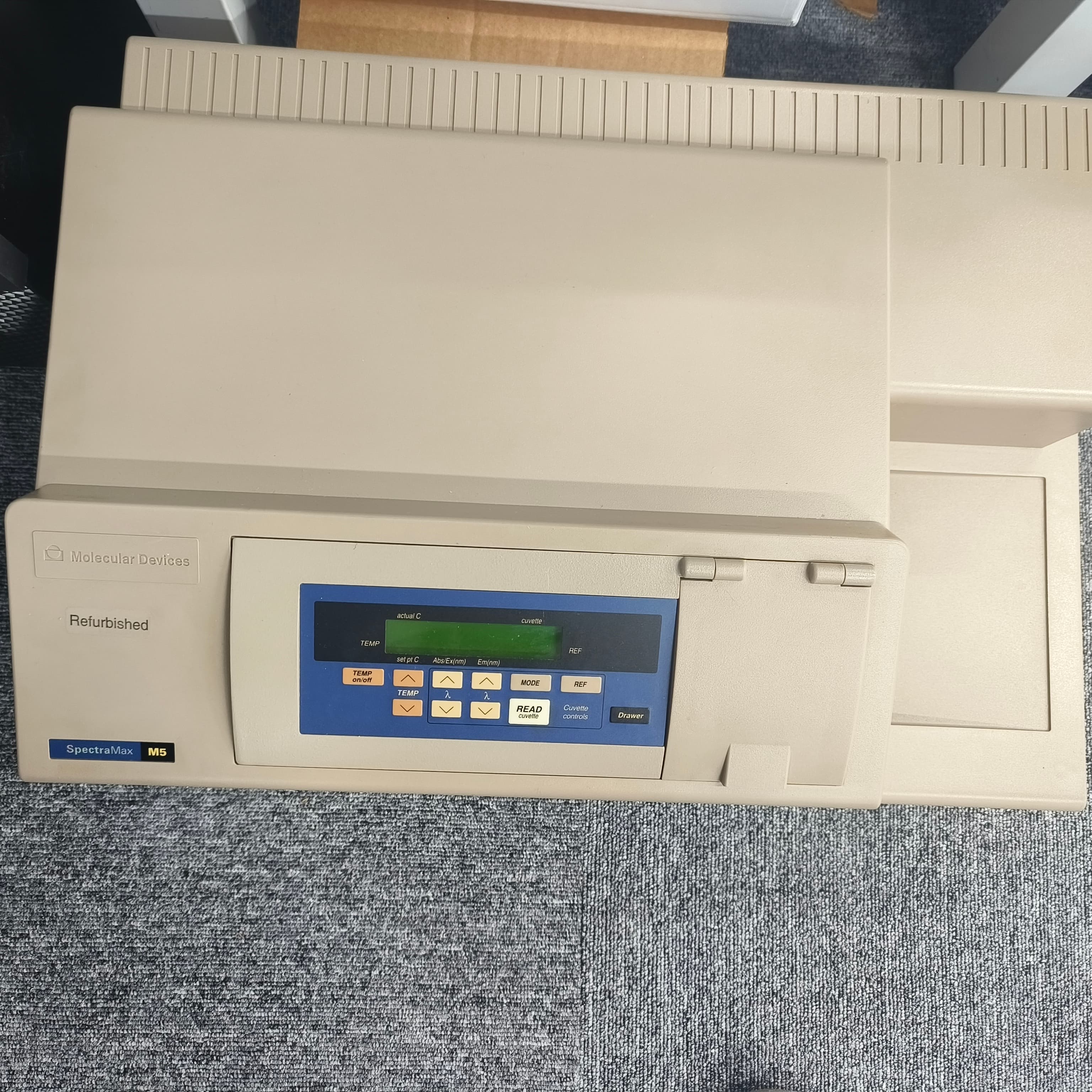

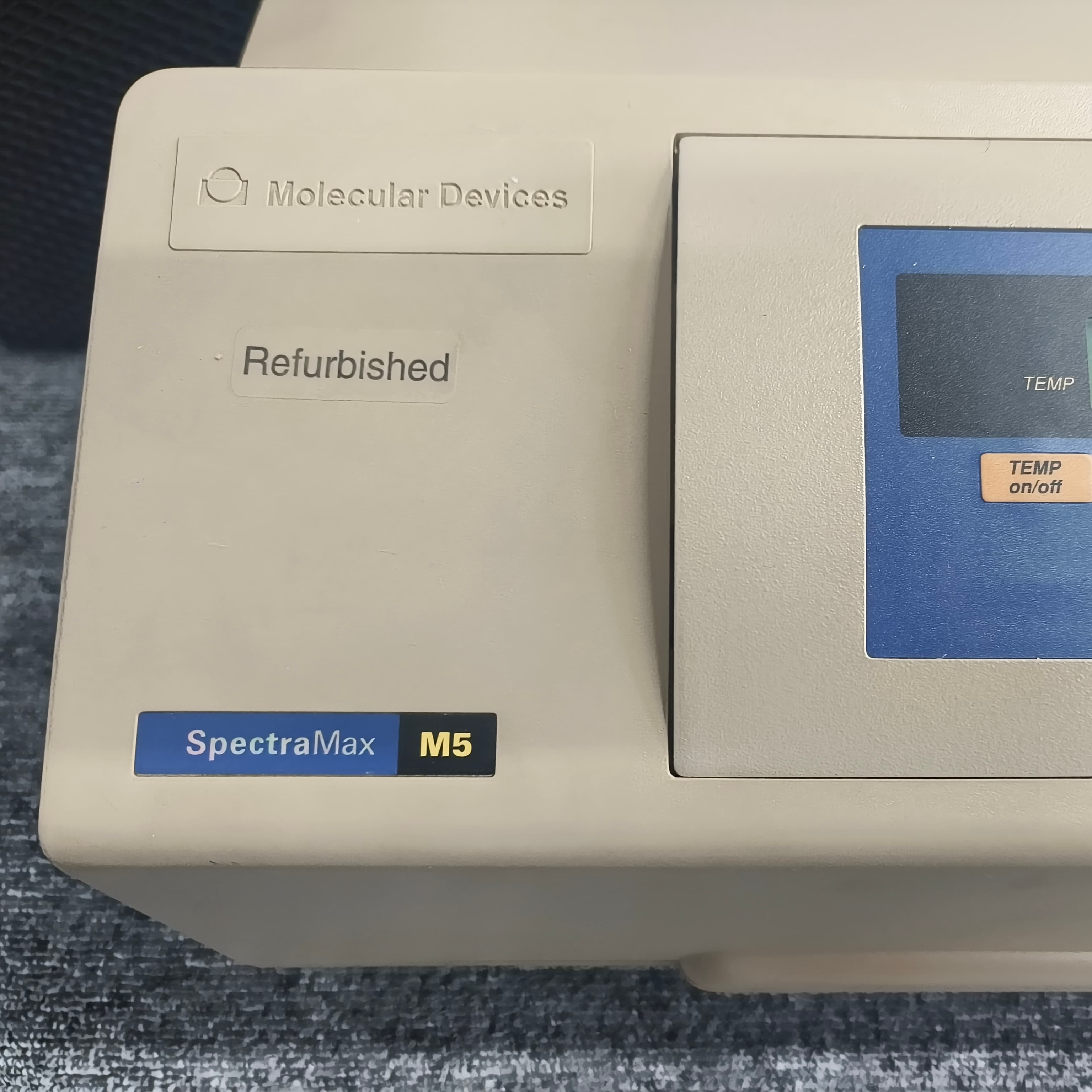

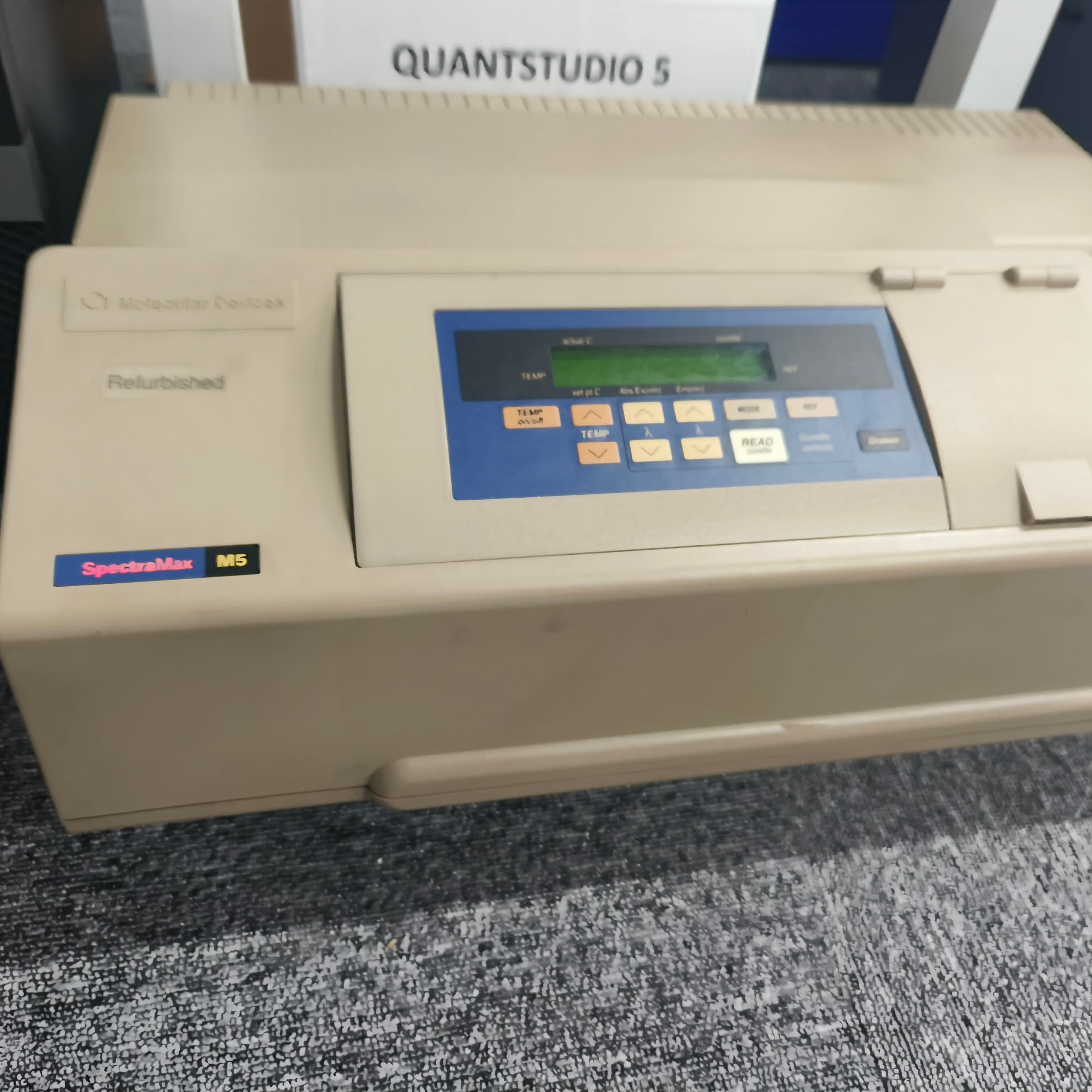

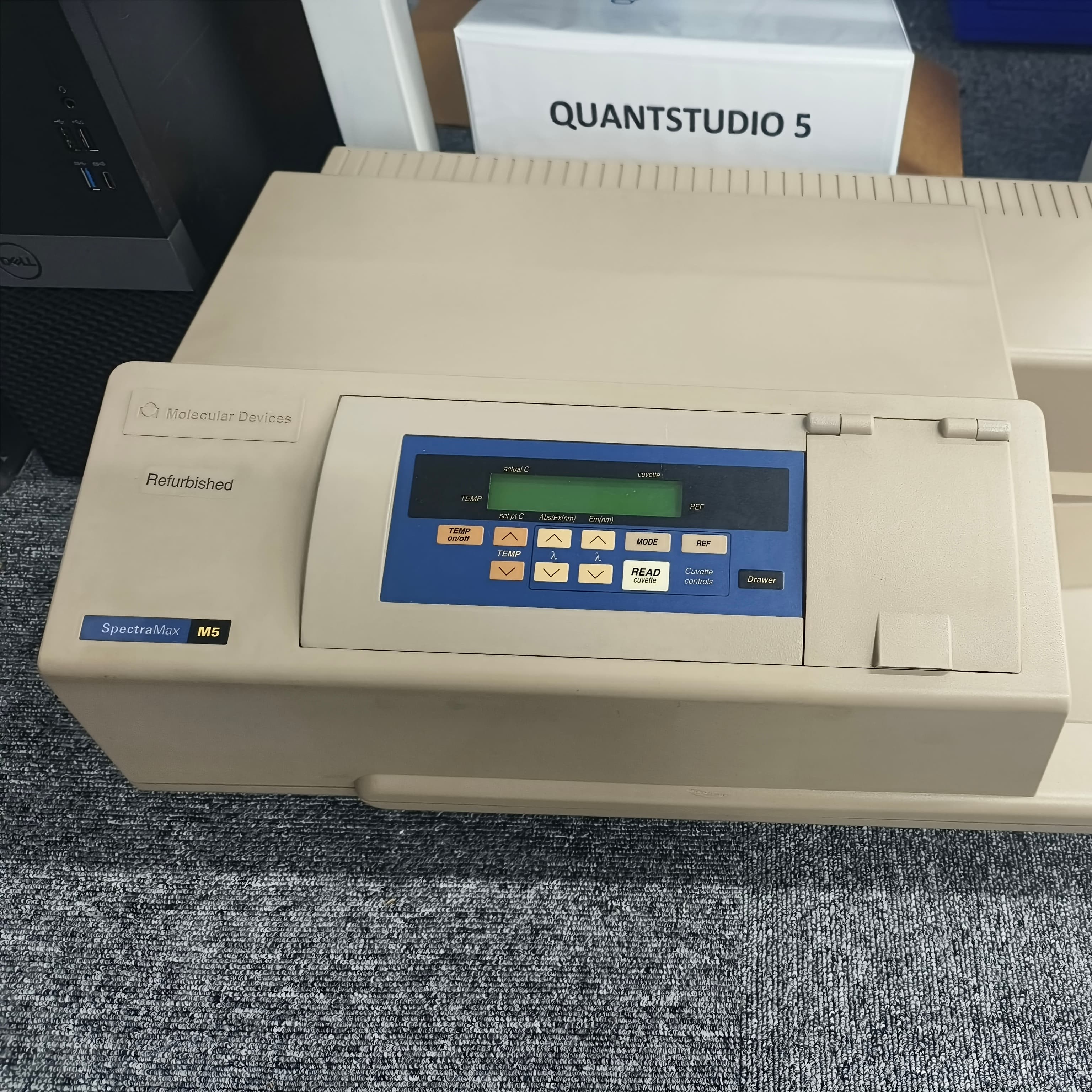

Used Molecular Devices SpectraMax M5 Multi-Mode Microplate Reader

The Molecular Devices SpectraMax M5 Multi-Mode Microplate Reader is a versatile and widely adopted benchtop instrument designed for high-performance detection in life science research, drug discovery, and routine bioanalysis. As a five-mode reader, it integrates absorbance, fluorescence, luminescence, time-resolved fluorescence (TRF), and fluorescence polarization (FP) capabilities into a single, user-friendly platform. Its core design philosophy centers on flexibility and precision, leveraging dual monochromators for tunable wavelength selection without the need for expensive fixed filter sets, making it ideal for laboratories requiring broad application support and robust data quality.

A defining feature of the SpectraMax M5 is its advanced optical system. Unlike filter-based readers, it employs two high-resolution scanning monochromators that allow independent selection of excitation and emission wavelengths from 250 to 850 nm (1 nm increments). This provides exceptional flexibility for optimizing assay conditions, whether for UV-Vis protein quantification, sensitive fluorescent reporter gene assays, or TRF applications requiring specific lanthanide chelate wavelengths. The system is equipped with a bright xenon flash lamp and utilizes both photodiodes and photomultiplier tubes (PMTs) to ensure high sensitivity across its dynamic range. For absorbance measurements, the patented PathCheck sensor technology automatically corrects for path length differences caused by varying liquid volumes in microplate wells, normalizing readings to a standard 1 cm pathlength and enabling direct concentration calculations without manual standard curves.

The instrument supports a comprehensive range of plate formats, from 6-well to 384-well plates, and includes a dedicated cuvette port for traditional spectrophotometer-style measurements, effectively combining the throughput of a microplate reader with the precision of a cuvette-based instrument. Integrated temperature control (from ambient +2°C to 60°C) and linear shaking ensure optimal conditions for enzymatic reactions and cell-based assays. Operationally, the SpectraMax M5 is driven by the powerful SoftMax Pro software, which offers pre-validated protocol templates, advanced kinetic analysis, and compliance features for GxP environments, streamlining workflows from method setup to final report generation. Its modularity and reliability have made it a workhorse in applications spanning ELISA, nucleic acid quantification, kinase screening, and ADME-Tox studies.
