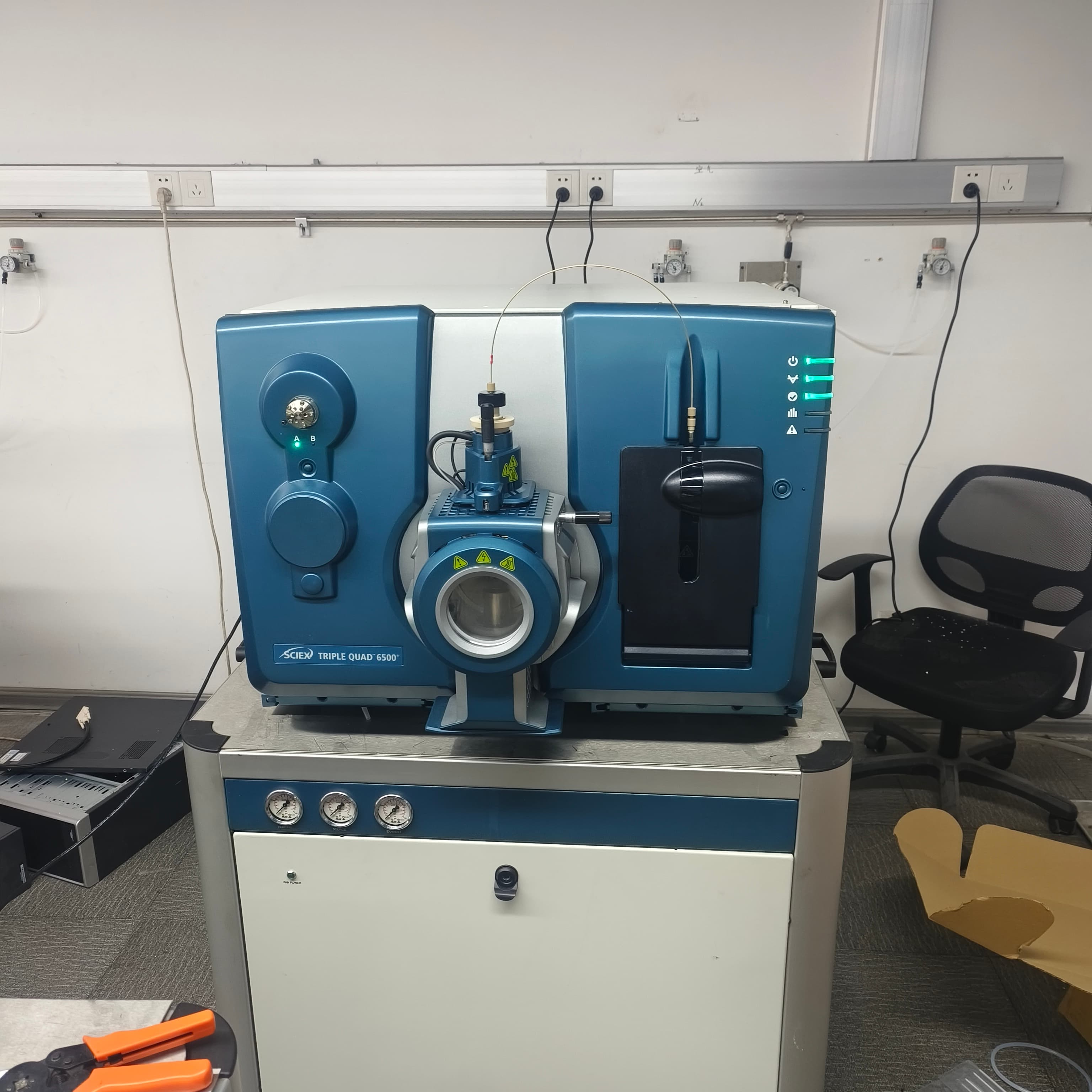

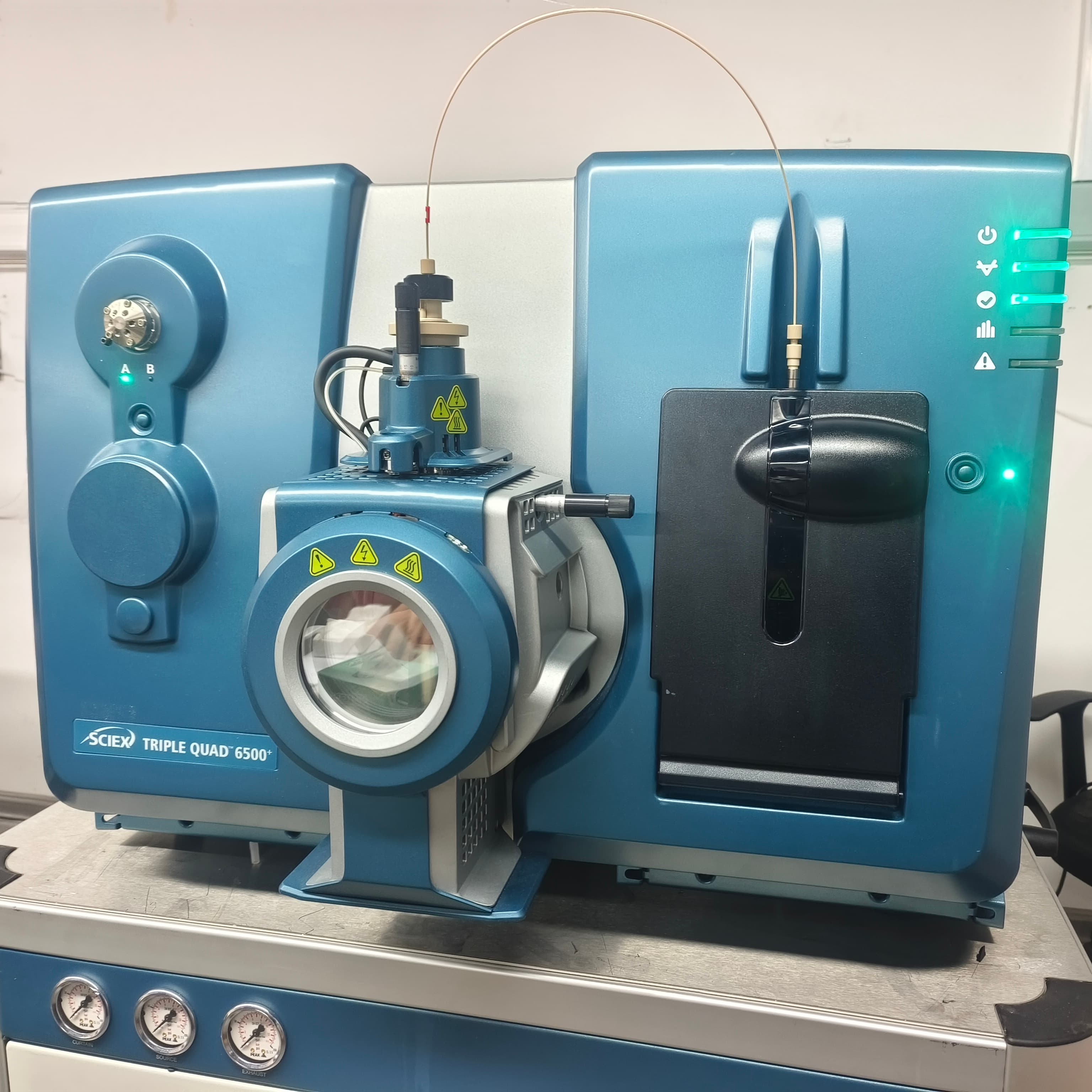

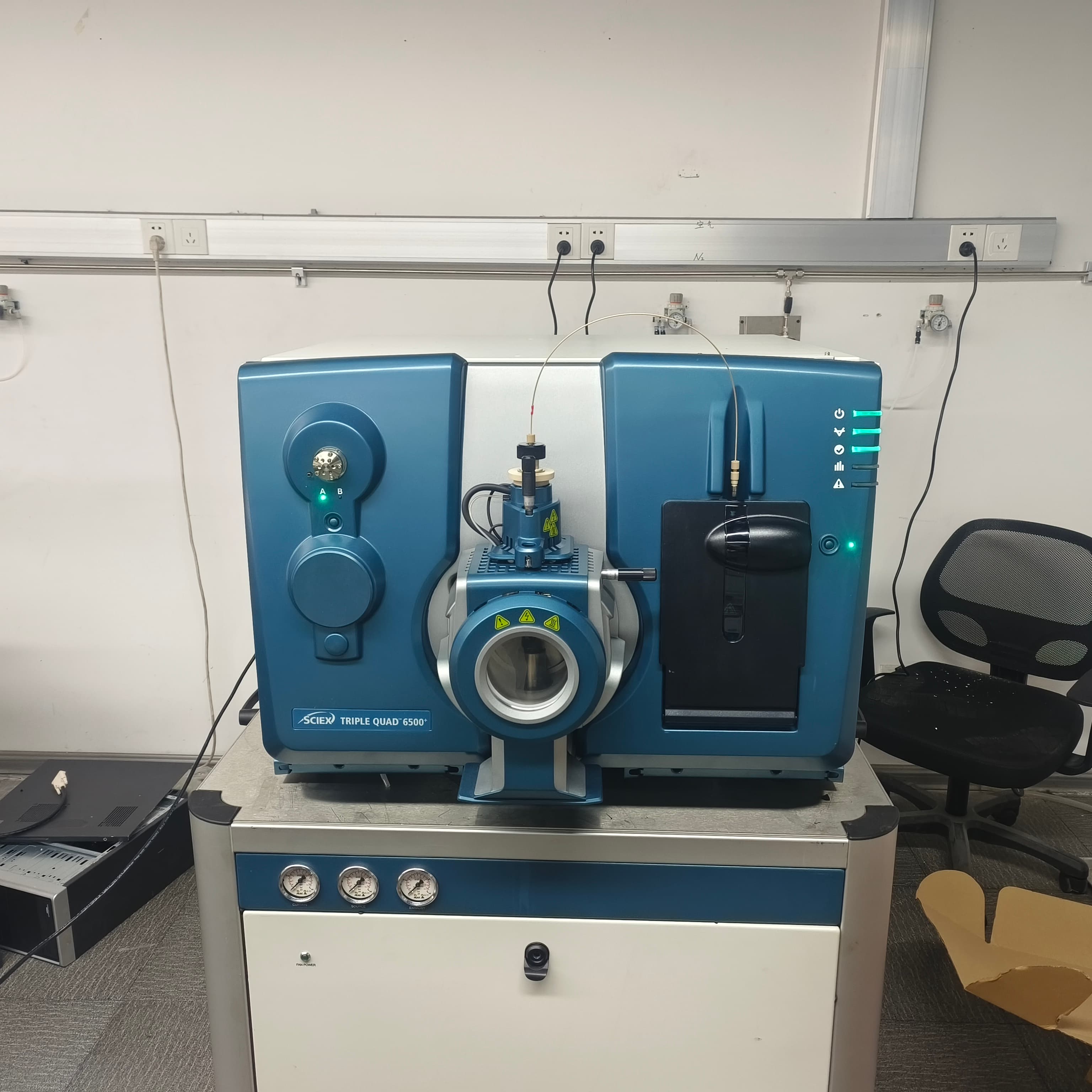

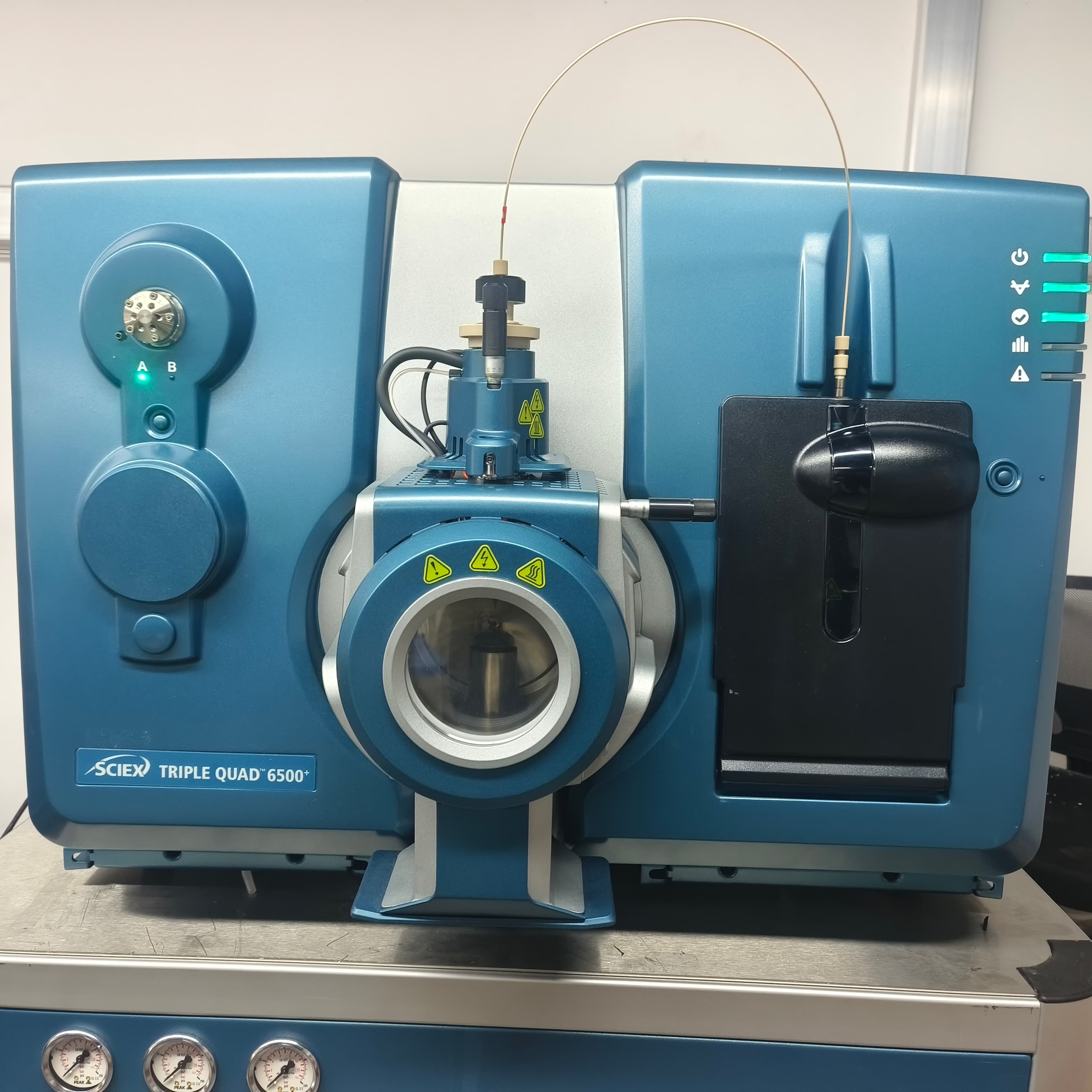

Used AB Sciex 6500+ Triple Quadrupole LC-MS/MS System

AB Sciex 6500+ Triple Quadrupole LC-MS/MS System

AB Sciex 6500+​ is a high-performance triple quadrupole liquid chromatography-tandem mass spectrometry (LC-MS/MS) system developed by SCIEX, a leading analytical instrumentation company. This instrument represents a significant advancement in quantitative and qualitative analysis for life sciences, pharmaceutical research, clinical diagnostics, and environmental monitoring applications.

Technical Overview

The 6500+ system combines liquid chromatography (LC) separation with the sensitivity and specificity of triple quadrupole mass spectrometry. The core technology features an enhanced ion source design, improved collision cell technology, and advanced electronics that collectively deliver exceptional performance in trace-level compound detection. The system operates with electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) sources, providing flexibility for analyzing a wide range of compounds from small molecules to large biomolecules.

Key specifications include a mass range of 5-1,500 m/z (extendable to 2,000 m/z), scan speeds up to 10,000 Da/sec, and detection limits in the low femtogram range. The instrument's dynamic range spans up to 6 orders of magnitude, making it suitable for both high-abundance and trace-level analyses. The system is equipped with the Turbo V™ ion source, which enhances ionization efficiency and reduces matrix effects, while the QJet® ion guide technology improves ion transmission and sensitivity.

Performance Features

The 6500+ system is renowned for its ultra-high sensitivity​ in multiple reaction monitoring (MRM) mode, achieving detection limits that are 2-5 times lower than previous generation instruments. This sensitivity is critical for applications such as biomarker discovery, drug metabolism studies, and environmental contaminant monitoring where compounds are present at extremely low concentrations.

The instrument's robustness and reproducibility​ are ensured through advanced temperature control systems, precise gas flow regulation, and automated calibration routines. The system maintains stable performance even with complex sample matrices, reducing the need for extensive sample cleanup and minimizing analytical variability.

Data acquisition speed​ is another standout feature, with the ability to perform rapid polarity switching (within 5 ms) and monitor hundreds of MRM transitions in a single run. This capability is particularly valuable for high-throughput screening applications in drug discovery and clinical research.

Software and Automation

The 6500+ is controlled by SCIEX's Analyst® software, which provides an intuitive interface for method development, data acquisition, and result review. The software includes advanced data processing algorithms for peak integration, quantification, and quality control. For automated workflows, the system can be integrated with robotic sample preparation systems and HPLC autosamplers, enabling 24/7 operation in high-throughput laboratories.

Application Areas

In pharmaceutical research, the 6500+ is widely used for pharmacokinetic studies, bioanalytical method validation, and impurity profiling. Its high sensitivity allows for accurate quantification of drugs and metabolites in biological matrices like plasma, urine, and tissue homogenates.

In clinical diagnostics, the system supports targeted metabolomics, vitamin D analysis, newborn screening, and therapeutic drug monitoring. The system's precision and reproducibility meet regulatory requirements for clinical laboratory testing.

In food safety and environmental analysis, the instrument detects pesticides, veterinary drug residues, and environmental contaminants at levels well below regulatory limits. Its ability to handle complex matrices makes it ideal for challenging sample types.

System Advantages

Compared to other LC-MS systems, the 6500+ offers several distinct advantages: superior sensitivity for trace analysis, excellent quantitative accuracy and precision, high throughput capabilities, and robust performance in routine operation. The system's modular design allows for future upgrades and customization based on evolving analytical needs.

Conclusion

The AB Sciex 6500+ LC-MS/MS system represents a benchmark in triple quadrupole mass spectrometry technology. Its combination of sensitivity, speed, and reliability makes it a preferred choice for researchers and analysts requiring definitive quantitative results in complex matrices. Whether for drug development, clinical diagnostics, or environmental monitoring, the 6500+ delivers performance that meets the most demanding analytical challenges.
