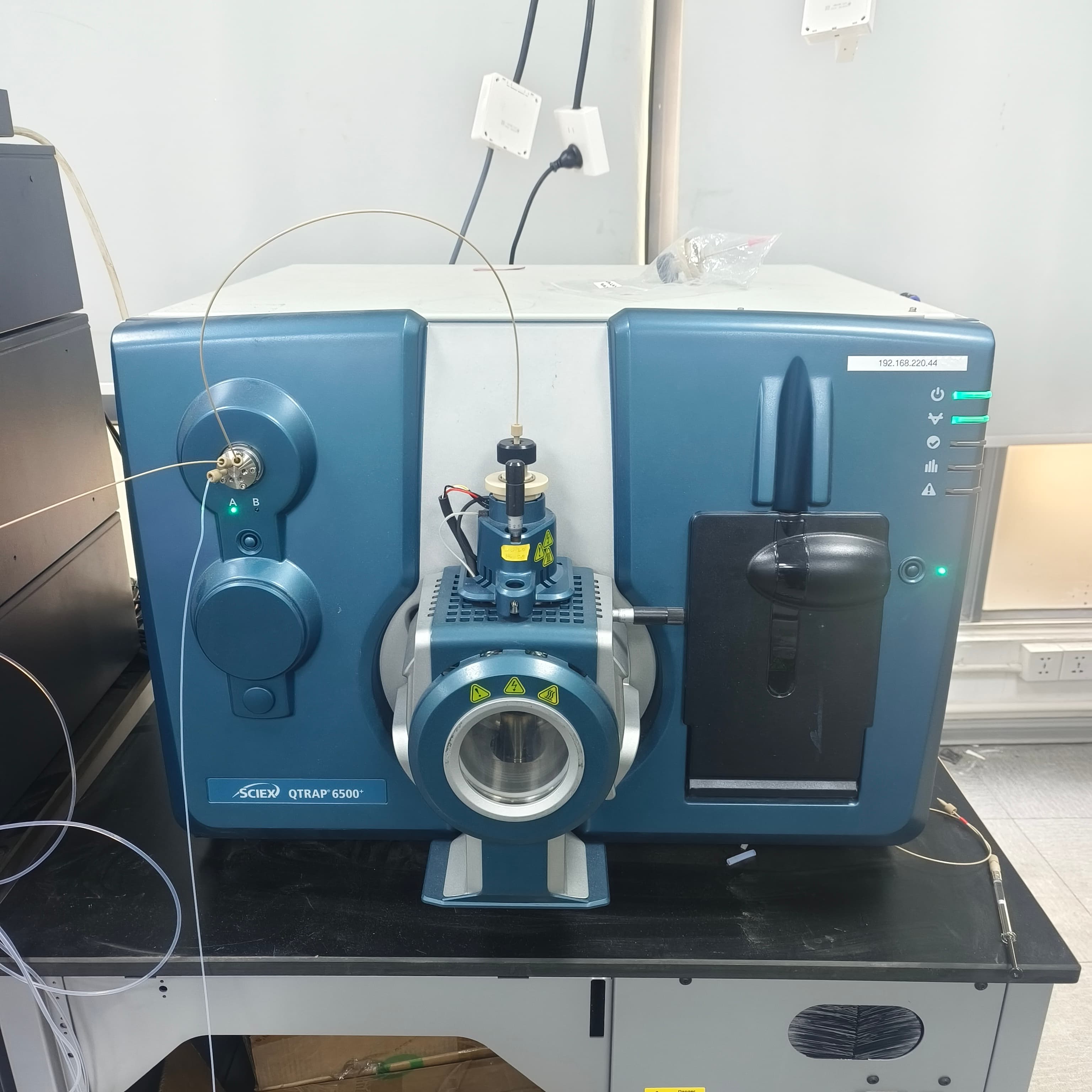

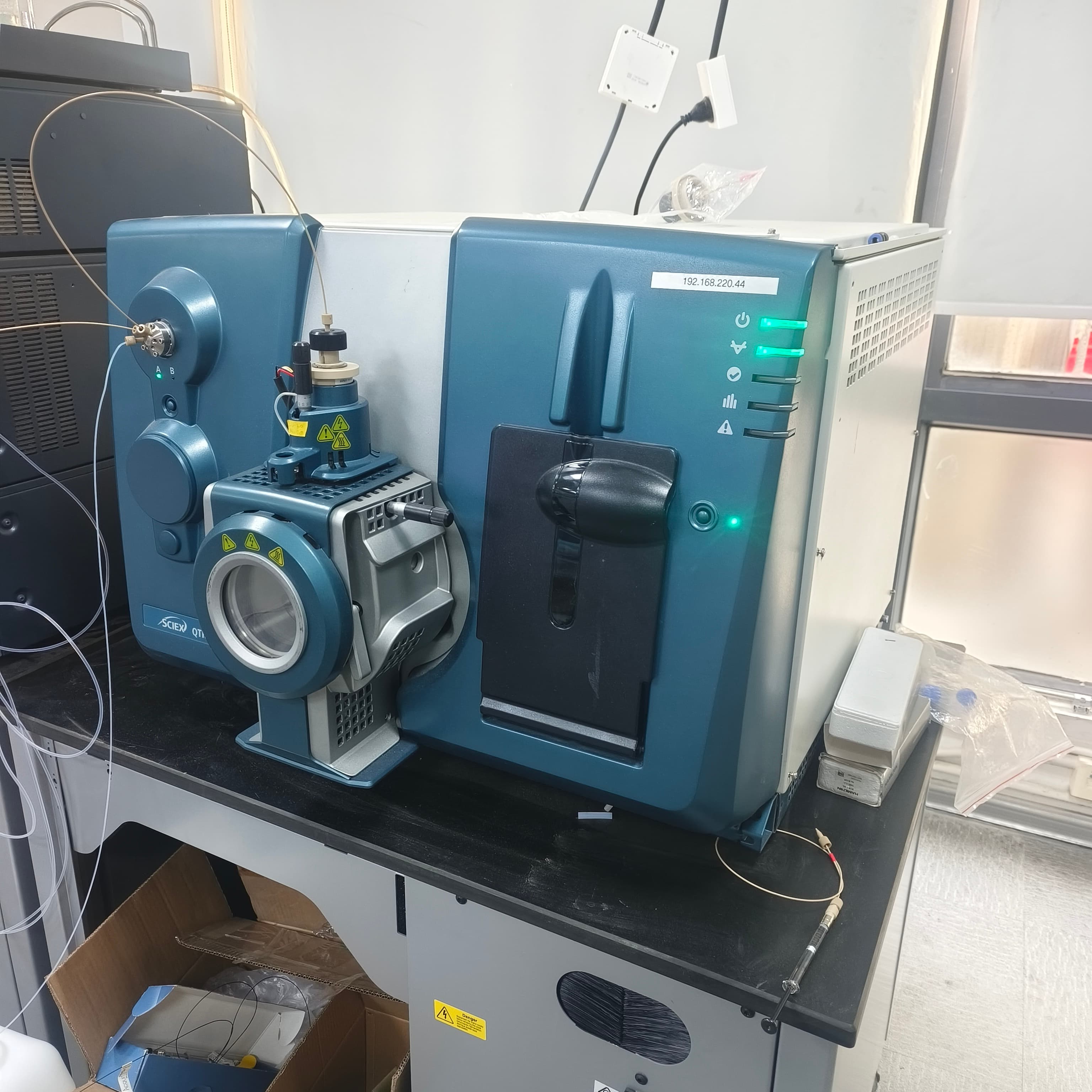

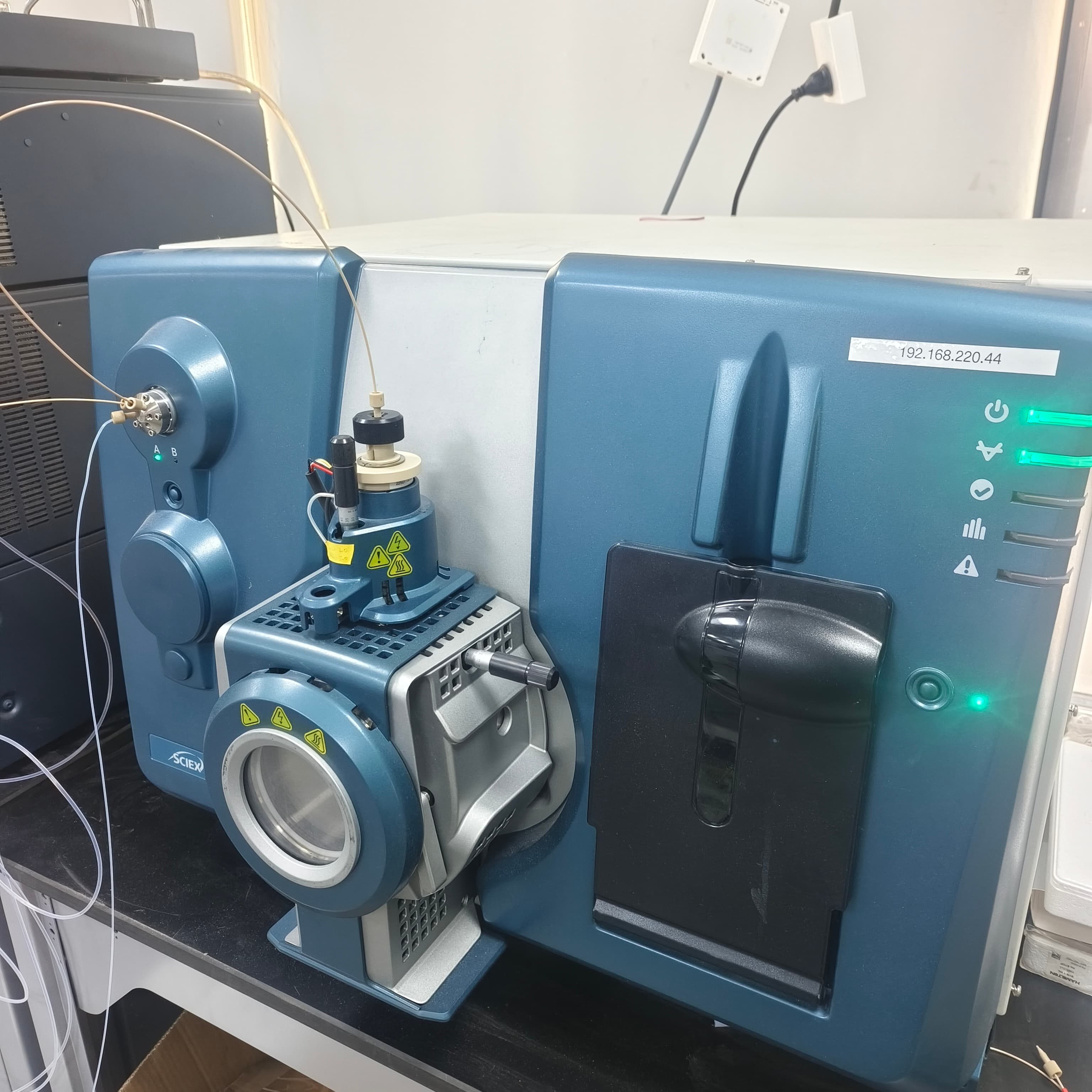

Used AB Sciex 6500+ Triple Quadrupole LC-MS/MS System& Waters LC

The AB Sciex 6500+ Triple Quadrupole LC-MS/MS System coupled with a Waters Liquid Chromatography (LC) system represents a premier analytical solution in the field of quantitative and qualitative mass spectrometry. This integrated platform is designed for the most demanding applications, offering exceptional sensitivity, robustness, and productivity for laboratories in pharmaceutical, biopharmaceutical, clinical research, food safety, and environmental analysis. The synergy between the AB Sciex mass spectrometer and the Waters UHPLC technology creates a complete workflow that excels in precision, speed, and data reliability.

At the heart of this system is the AB Sciex 6500+ triple quadrupole mass spectrometer, a benchmark instrument renowned for its superior performance. It incorporates advanced technologies such as the SelexION+ differential mobility spectrometry (DMS) capability and the Turbo V ion source. The DMS technology provides an additional dimension of separation, effectively removing isobaric interferences and chemical background noise before ions reach the mass analyzer. This results in significantly cleaner chromatograms, lower limits of detection, and higher confidence in results, especially for complex matrices. The rugged Turbo V ion source, with its heated electrode technology, ensures stable and efficient ionization across a wide range of flow rates and mobile phase compositions, maximizing uptime and reproducibility.

The front-end separation is powered by a Waters LC system, typically a high-performance model such as the Acquity UPLC H-Class or I-Class systems. Waters UltraPerformance Liquid Chromatography (UPLC) technology employs sub-2-micron particle columns and high-pressure fluidics to achieve superior chromatographic resolution, peak capacity, and speed compared to conventional HPLC. This results in sharper, more symmetrical peaks, which directly translates to improved sensitivity and specificity for the mass spectrometer. The precise solvent delivery and excellent gradient reproducibility of the Waters LC ensure consistent retention times and robust method transfer between instruments. The combination allows for the analysis of hundreds of compounds in a single run with very fast cycle times.

The integrated system is controlled by industry-leading software, primarily AB Sciex's Analyst software or the newer SCIEX OS software. These platforms provide a unified environment for instrument control, method development, data acquisition, and processing. For quantitative analysis, the system excels in Multiple Reaction Monitoring (MRM) mode, where the first quadrupole (Q1) selects a specific precursor ion, which is fragmented in the collision cell (Q2), and a specific product ion is monitored by the third quadrupole (Q3). This MRM mode offers unparalleled selectivity and sensitivity for target compound analysis. The speed of the 6500+ system allows for monitoring thousands of MRM transitions in a single chromatographic run, making it ideal for large-scale panels like metabolomics, pesticide screening, or pharmacokinetic studies.

In practical application, this LC-MS/MS platform is a workhorse for bioanalysis, supporting drug discovery and development from early screening to late-stage clinical trials. It provides accurate quantification of drugs and metabolites in biological fluids at ultra-low concentrations. In clinical diagnostics, it is used for precise measurement of vitamins, hormones, and biomarkers. For food and environmental safety, it enables comprehensive screening and confirmation of contaminants like mycotoxins, veterinary drug residues, and pesticides at levels required by global regulations. The robustness of the system ensures reliable operation in high-throughput environments, minimizing downtime and maintenance needs.

In conclusion, the combination of the AB Sciex 6500+ Triple Quadrupole MS/MS and a Waters LC system forms a gold-standard analytical platform. It leverages the strengths of both companies: Waters' expertise in high-resolution, fast liquid chromatography and AB Sciex's leadership in sensitive and selective mass spectrometry detection. This synergy delivers a complete solution that addresses the key challenges of modern laboratories—namely, the need for higher quality data, faster turnaround times, and the ability to analyze increasingly complex samples with utmost confidence. It is an indispensable tool for scientists who require the highest levels of performance for their critical quantitative analyses.
