Mettler Toledo AB304-S/FACT Balance

Mettler Toledo AB304-S/FACT Analytical Balance

The Mettler Toledo AB304-S/FACT is a high-performance analytical balance from the Classic AB-S/FACT series, designed for precision-oriented weighing tasks in pharmaceutical quality control, chemical research laboratories, food testing, universities, and industrial R&D environments. With a maximum capacity of 320 g and a readability of 0.1 mg (0.0001 g), it provides the fine resolution required for accurate analytical work such as active pharmaceutical ingredient (API) weighing, precise reagent formulation, gravimetric analysis, and reference standard preparation.

At the heart of the AB304-S/FACT is Mettler Toledo's proven MonoBloc® single-module electromagnetic force restoration (EMFR) weighing cell, in which the critical mechanical and magnetic components are integrated into one solid metal unit. This compact design offers excellent overload protection, shock resistance, and long-term measurement stability—essential qualities for instruments subjected to daily lab use. The standout feature of this model is FACT® (Fully Automatic Calibration Technology), which continuously monitors ambient temperature and automatically initiates an internal calibration using the built-in test weight when a significant temperature drift is detected or at a preset time interval. This eliminates the risk of forgetting manual calibration and ensures consistent accuracy even in environments with fluctuating climate conditions, supporting GLP/GMP-compliant workflows.

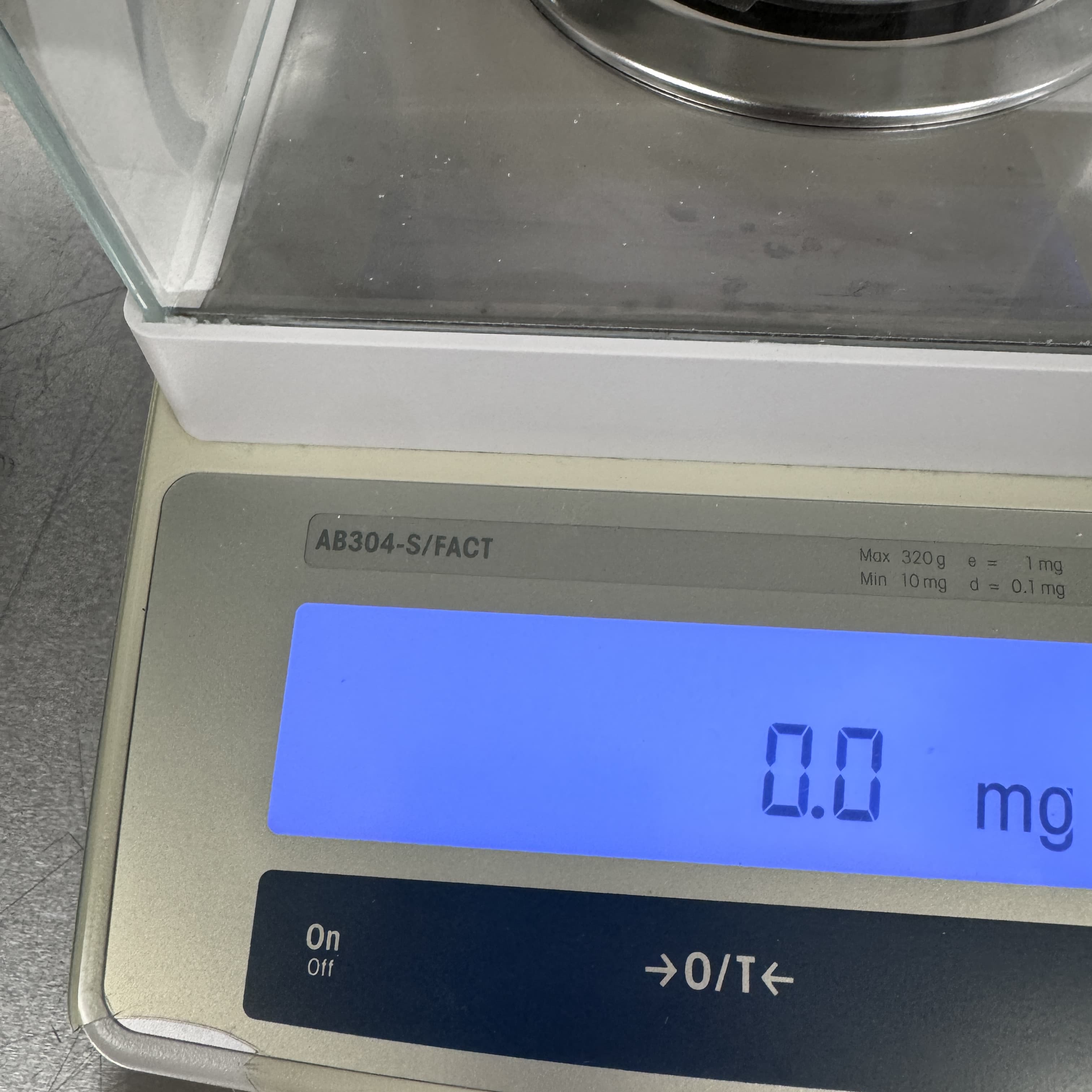

User interaction is facilitated by a high-contrast backlit LCD display​ and clearly labeled tactile keys. The menu offers one-touch access to essential functions including tare, zero, unit switching (g, mg, lb, oz, ozt, dwt, ct, etc.), and built-in applications such as simple weighing, piece counting, percent weighing, and dynamic/animal weighing (density determination supported via the under-pan hook). The typical stabilization time is approximately 3.5–5 seconds, balancing precision with practical throughput.

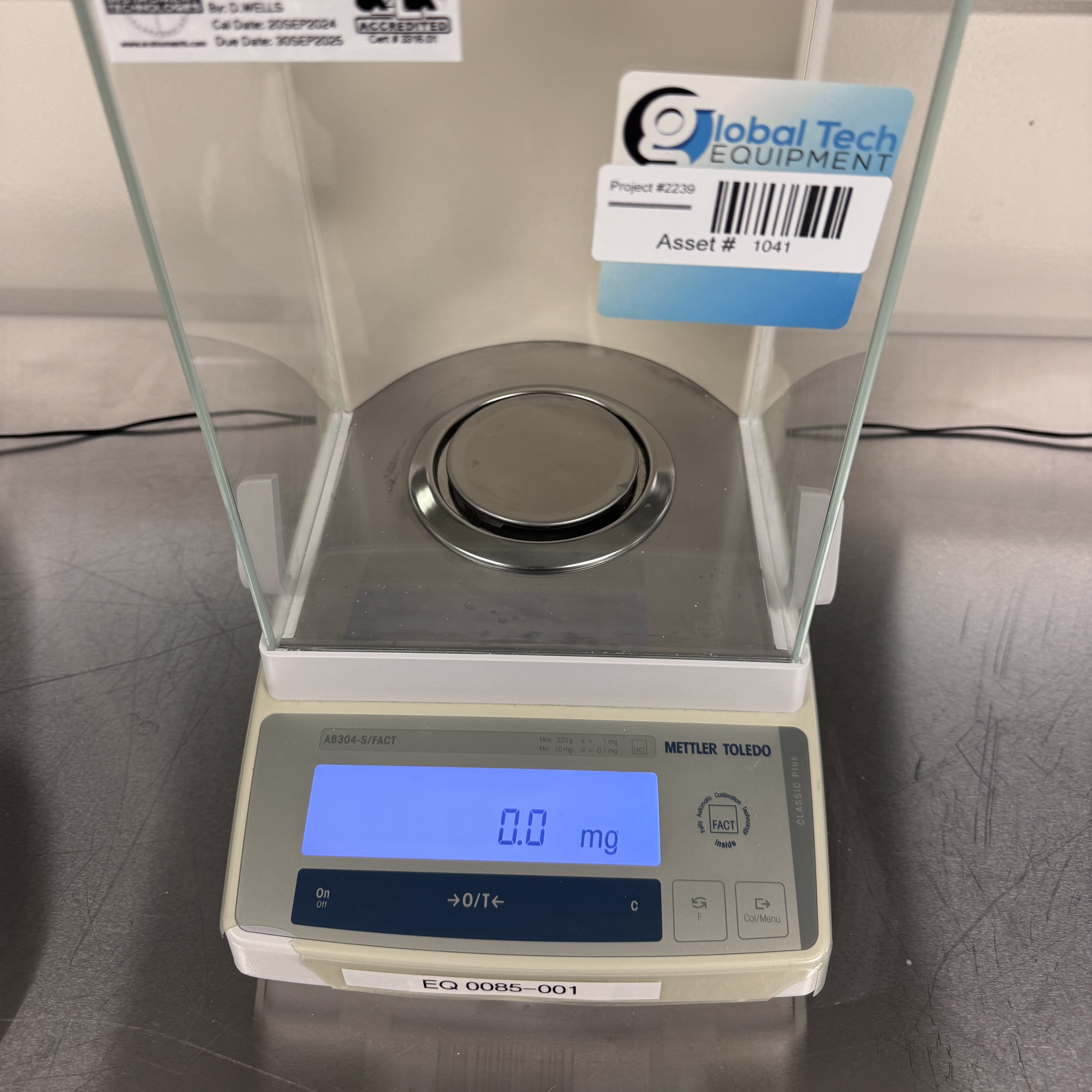

Durability is a key attribute: the balance housing is a die-cast aluminum alloy frame with a chemical-resistant coating, protecting internal electronics from spilled reagents or corrosive powders. A three-glass-panel removable draft shield​ (effective height 237 mm) allows easy sample access and thorough cleaning to prevent cross-contamination. The circular stainless-steel weighing pan (Ø80 mm) is easy to wipe down, and a transparent plastic protective cover is included for the balance body. An RS-232C interface​ (Sub-D 9-pin) enables direct connection to printers, PCs, or LIMS for automatic data capture with date/time and calibration status—critical for regulated laboratory documentation.

Compact (245 × 321 × 344 mm) yet robust, the AB304-S/FACT represents a time-tested solution where reliable 0.1 mg resolution, automated calibration assurance, and rugged lab-grade construction are required. Although discontinued by the manufacturer, it remains widely used and respected in laboratories worldwide.

Technical Specifications — Mettler Toledo AB304-S/FACT
